Jockey Wheel Clamps

If your jockey wheel clamp has been letting you down as much as your jockey wheel, then don't just switch over to Kartt jockey wheels... make sure you have an extra rugged Kartt clamp to see you through the day. Heavy duty cast jockey wheel clamps are the ultimate weapon to ensure safety, though our pressed clamps and high grade steel handles are tougher than most!

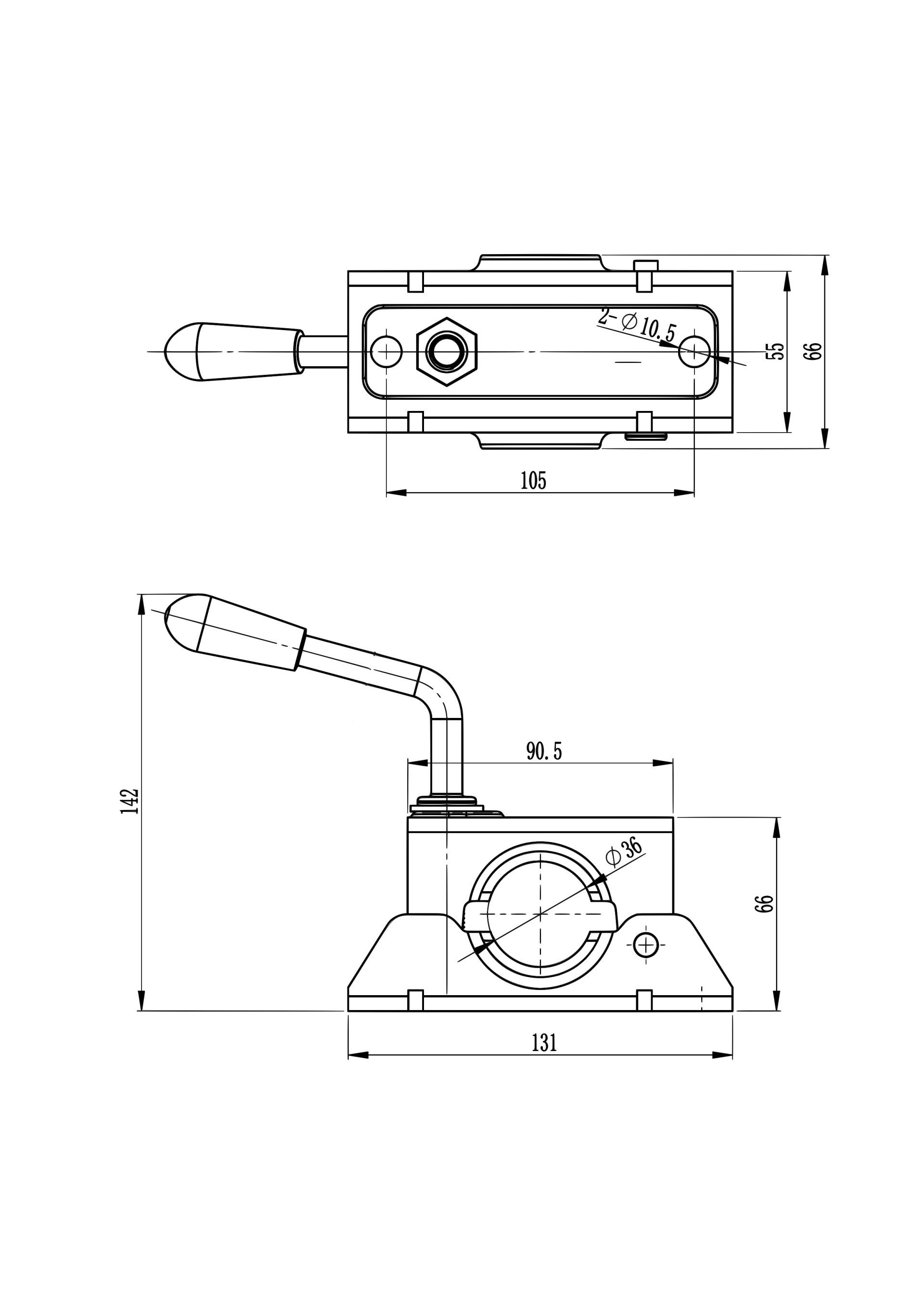

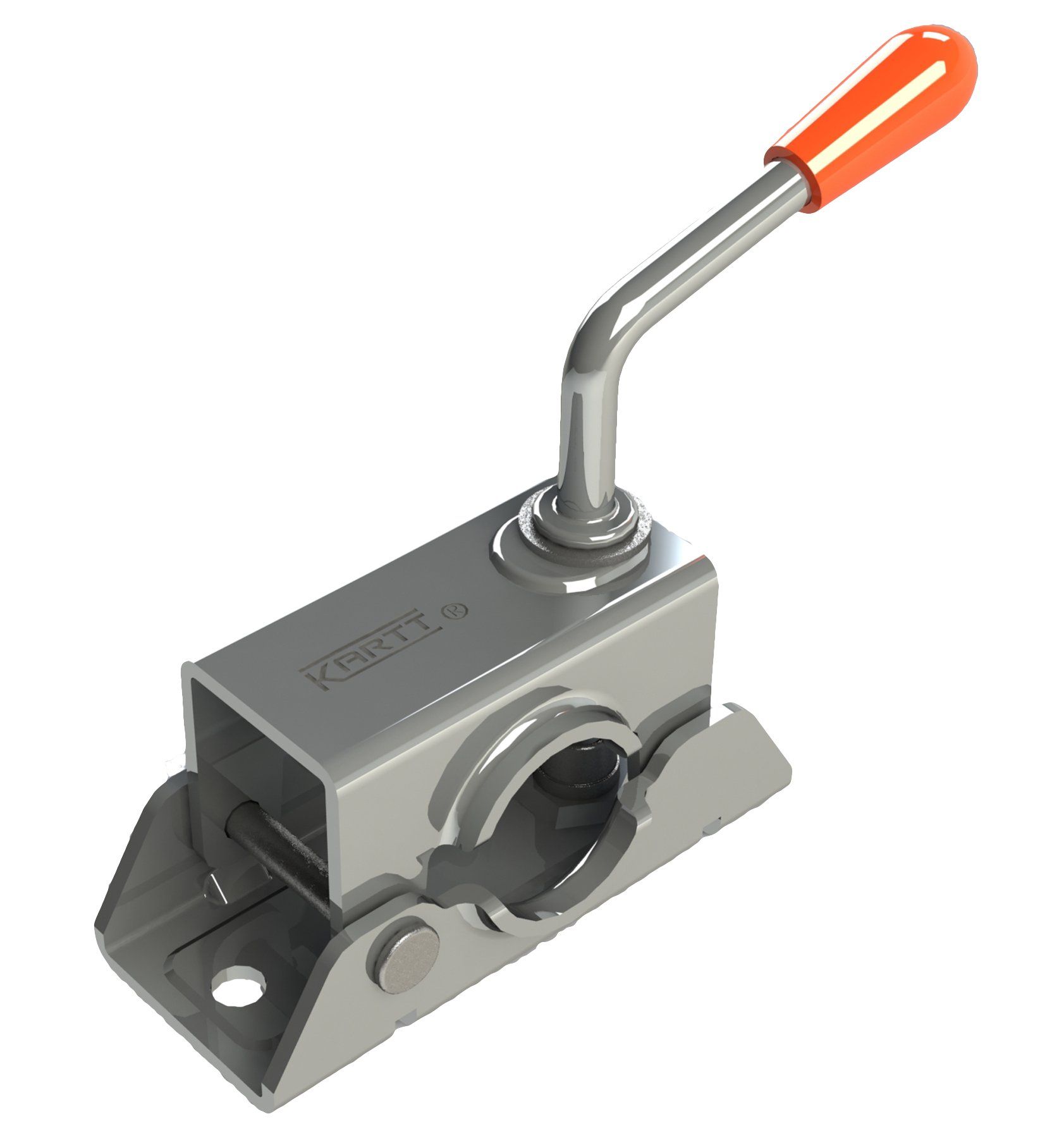

35 mm Jockey Wheel Clamp for Propstands

Designed to ensure jockey wheels stay in place under

the toughest conditions.

Part no KCL3501
Tube size ø 35mm
Material    steel
Bolt holes centre    105mm
Fixing holes 2
Item wgt 0.78kg

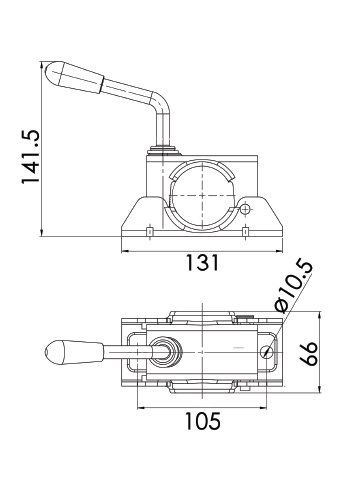

48 mm Jockey Wheel Clamp

Designed to ensure jockey wheels

stay in place under the

toughest conditions.

  Part no      KCL4801
Tube size ø 48mm
Material    steel
Bolt holes centre    105mm
Fixing holes      2
Item wgt      0.76kg

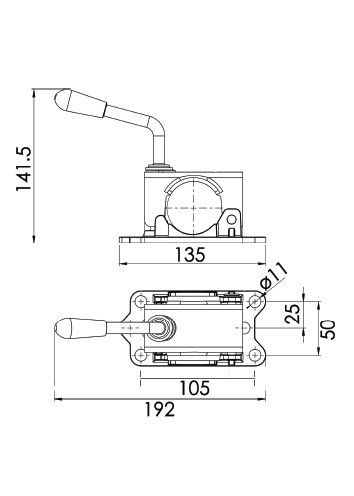

48 mm Jockey Wheel Clamp + Cast Base

A cast base to help to further strengthen the clamp

Part no      KCL4802
Tube size      ø 48mm
Material      steel +CI
Bolt holes centre      105 mm
Fixing holes      6
Item wgt      0.96 kg

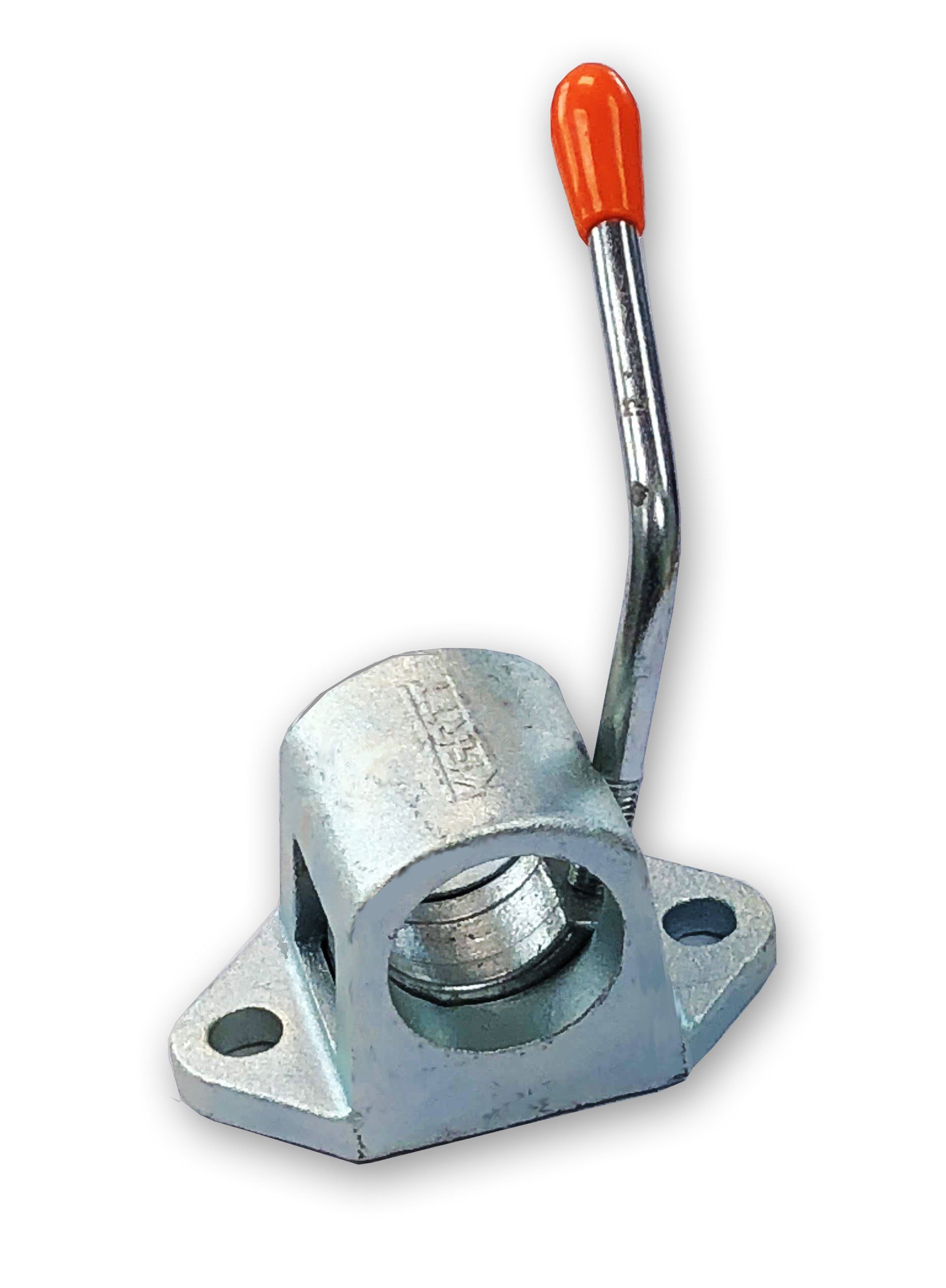

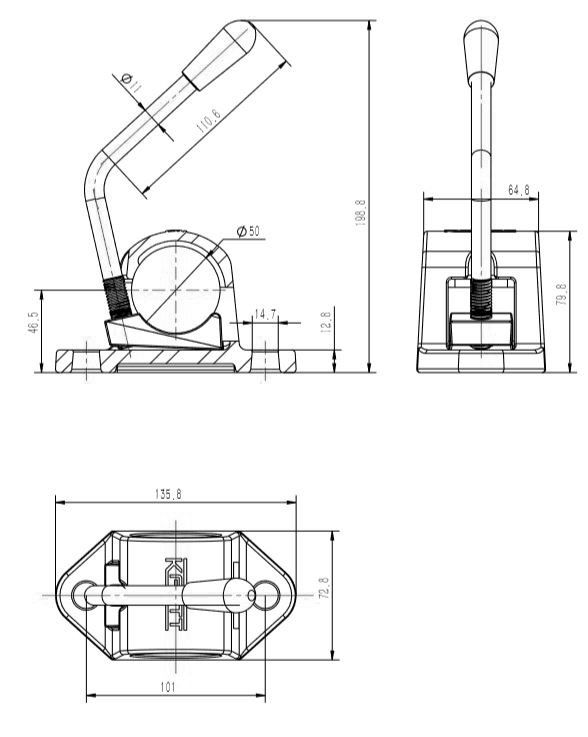

48mm Cast Iron Clamp

For extra grip and 105mm centres.

Part no      KCL4804
Tube size      ø 48mm
Material cast iron
Bolt holes centre      105 mm
Fixing holes 2
Item wgt      1.6 kg

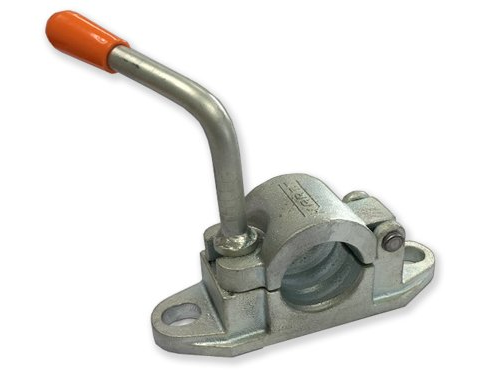

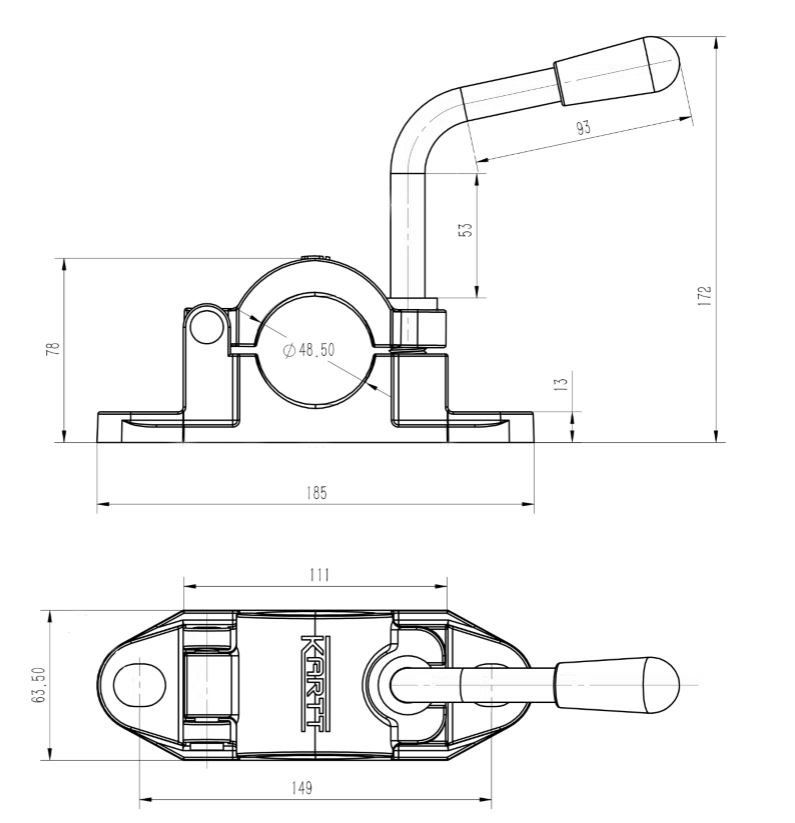

48 mm Cast Iron Swing Clamp

For heavy duty grip on ribbed jockey wheels

Part no KCL4805

Tube size ø 48mm
Material cast iron
Bolt holes centre 150 mm
Fixing holes 2
Item wgt 2.1 kg

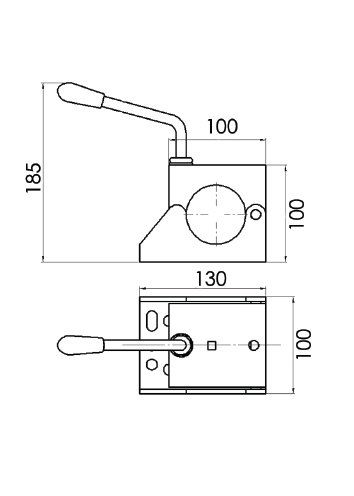

60 mm Diameter Clamp

Suitable for all 60 mm Heavy Duty Jockey Wheels where keeping heavy loads safe and

secure is a must.

Part no      KCL6001
Tube size      ø 60mm
Material      steel
Bolt holes centre      105 mm
Fixing holes      10
Item wgt      1.56 kg

Spare Wheels for jockey wheels

All Kartt Orange jockey wheels use tyres that have a higher content of pure rubber and the rims are made of considerably thicker steel than conventionally used.

They are constantly load and pressure tested to make sure that they will continue to operate under today's ever changing extreme conditions.

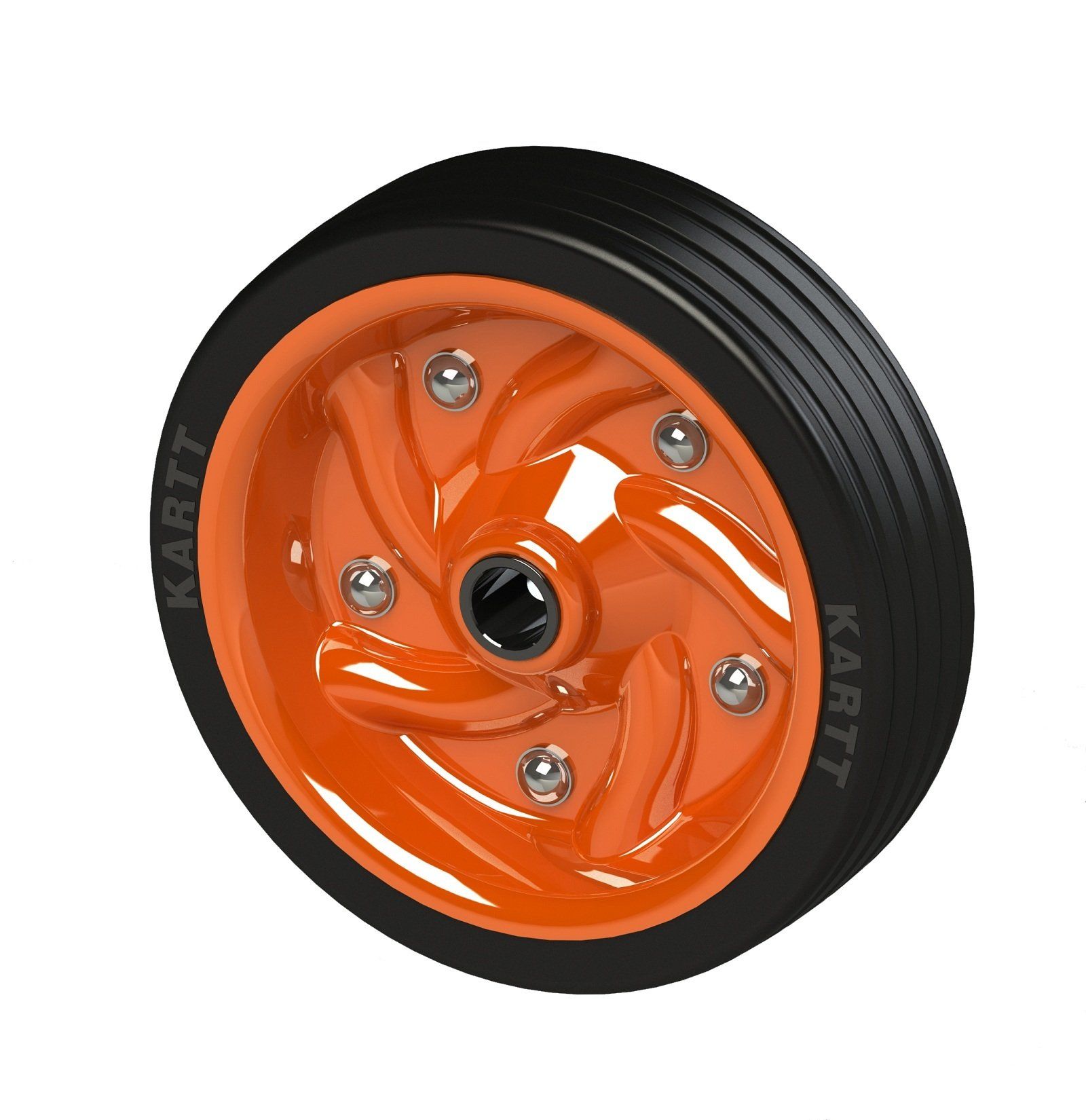

Heavy duty low profile

Part no KW011R

Nominal Wheel ⌀ 200 x 50 mm

Rim Powder coated steel

Tyre solid rubber

Pneumatic wheel

Part no KW004

Nominal Wheel ⌀ 260 x 85 mm

Rim Powder coated steel

Tyre pneumatic

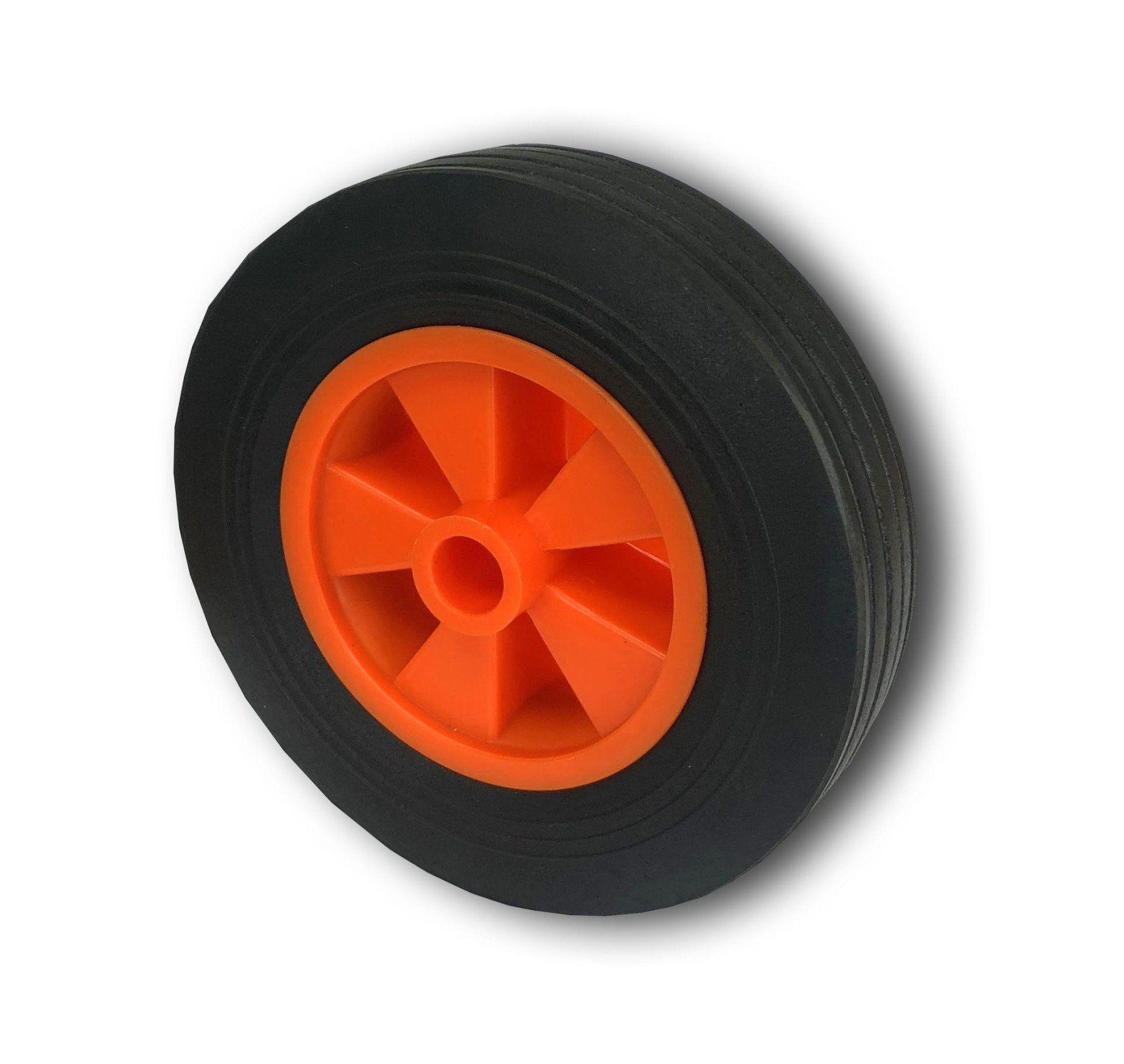

Plastic wheel

Part no KW005

Nominal Wheel ⌀ 200 x 50 mm

Rim Plastic

Tyre solid rubber

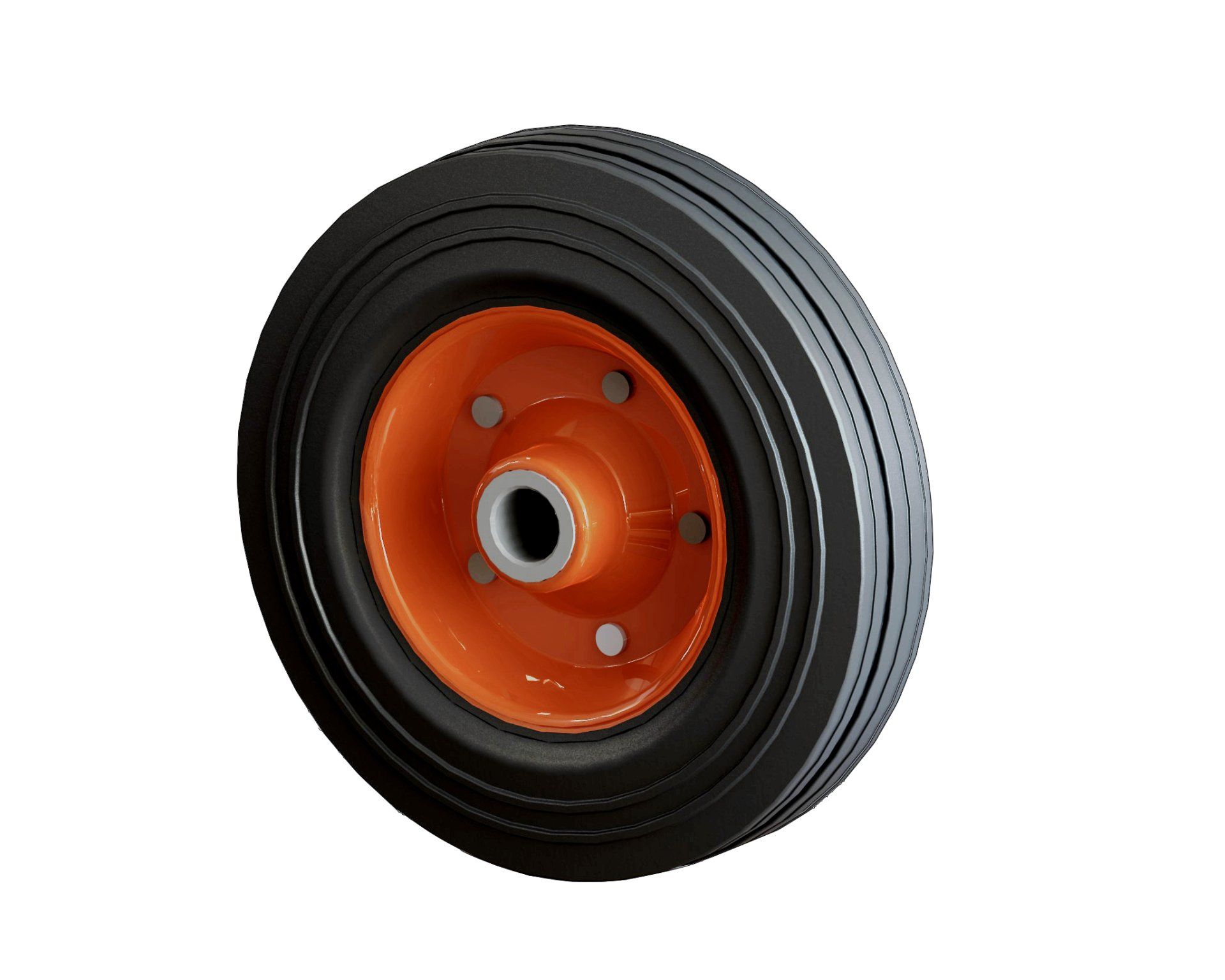

Basic wheel

Part no KW006

Nominal Wheel ⌀ 200 x 50 mm

Rim Powder coated steel

Tyre solid rubber

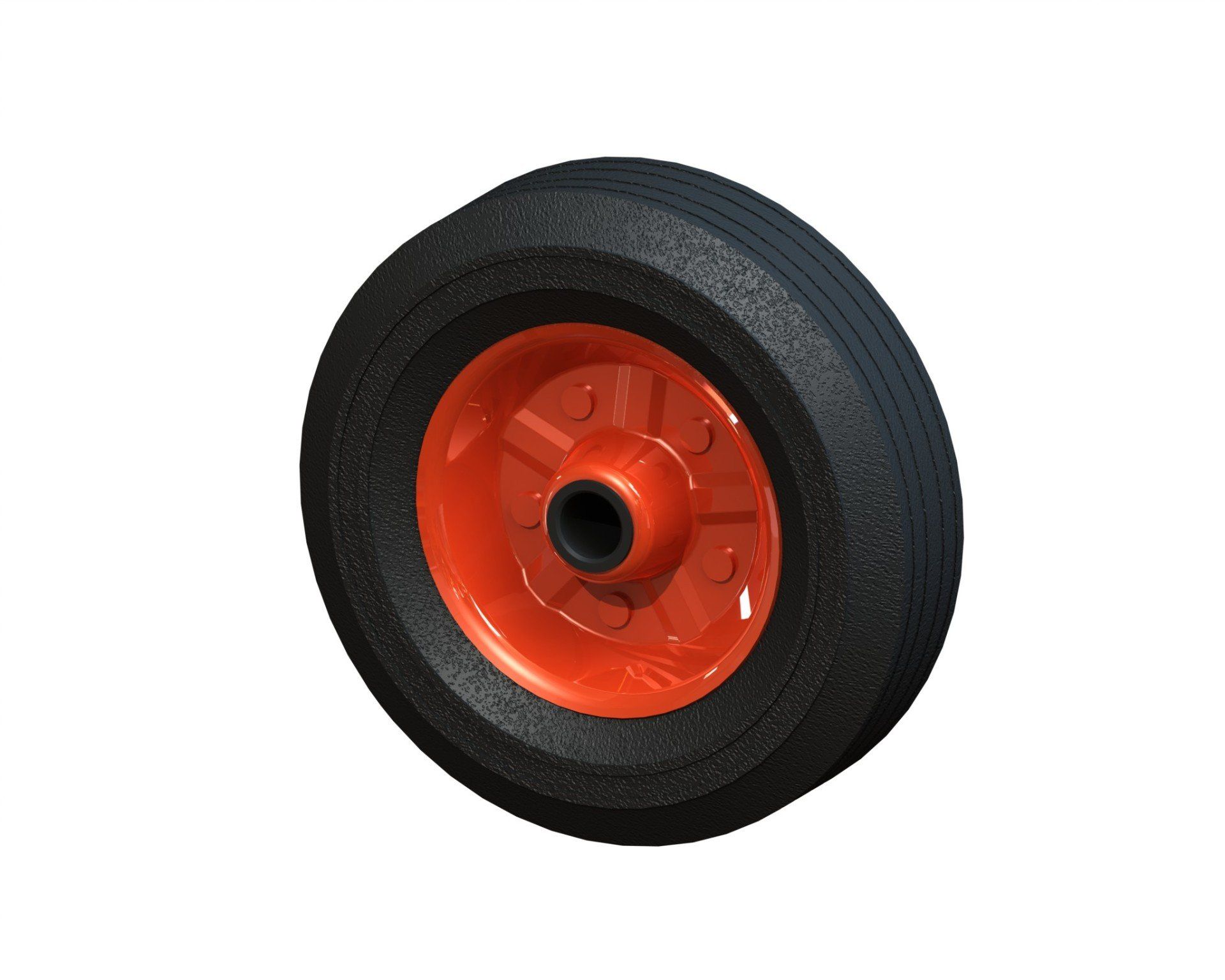

Standard wheel

Part no KW008

Nominal Wheel ⌀ 200 x 56 mm

Rim Powder coated steel

Tyre solid rubber

Extra wide wheel

Part no CW601

Nominal Wheel ⌀ 220 x 65 mm

Rim Galvanised steel

Tyre solid rubber
